AL+OPE – Expert in laminating—Hangzhou Hongcheng Technology Co., Ltd.

Single side aluminum foil composite

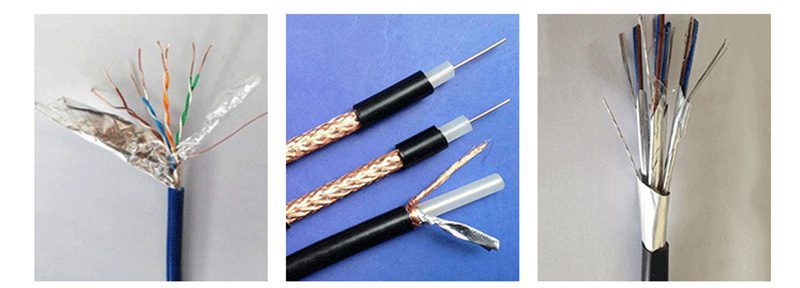

　　Product Description: Our Aluminum Foil Cable Shielding AL+OPE is engineered to protect cables from electromagnetic interference. The single side pink color of shielding cables with aluminum foil provides a stylish look while offering high-quality performance. The shielding cables with aluminum foil material provides a reliable and effective shield, ensuring your cables are safe and secure during use. The shielding process reduces unnecessary noise and provides a seamless video and audio reception through the cables. Our shielding cables with aluminum foil is easy to install, making it the perfect solution for different types of aluminum foil cable shielding applications. Protect your cables and enjoy uninterrupted service with our Aluminum Foil Cable Shielding AL+OPE.

　　Aluminum foil polyester include: Aluminum polyester tape (single side), Aluminum polyester tape (double side), Free edge aluminum polyester tape, Heat sealed aluminum polyester tape, Aluminum polyester foil tape, Composite aluminum-plastic tape.

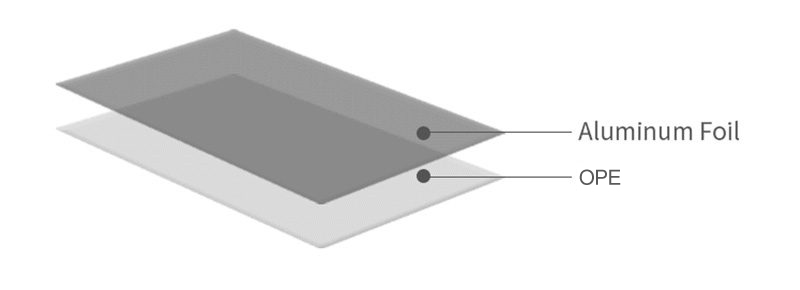

< PRODUCT STRUCTURE >

Specification	Composition		Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
Specification	AL	PET	Elongation （%）	Tensile strength （Mpa）	Basis weight （g/m²）	Peel strength (N/cm)
22±10%μm	7μm	12μm	35↑	60↑	39±10%	6.3↑
25±10%μm	7μm	15μm	35↑	60↑	43±10%	6.3↑
30±10%μm	7μm	20μm	35↑	60↑	51±10%	6.3↑
25±10%μm	9μm	12μm	35↑	60↑	45±10%	6.3↑
27±10%μm	9μm	15μm	35↑	60↑	49±10%	6.3↑
35±10%μm	9μm	23μm	35↑	60↑	61±10%	6.3↑
27±10%μm	12μm	12μm	20↑	60↑	53±10%	6.3↑
30±10%μm	15μm	12μm	20↑	60↑	62±10%	6.3↑
43±10%μm	20μm	20μm	20↑	60↑	86±10%	6.3↑
53±10%μm	25μm	25μm	20↑	60↑	107±10%	6.3↑
70±10%μm	40μm	25μm	15↑	60↑	147±10%	6.3↑
65±10%μm	50μm	12μm	10↑	60↑	156±10%	6.3↑
73±10%μm	50μm	20μm	15↑	60↑	167±10%	6.3↑
In addition to the above specifications, other special requirements can design according to customers
